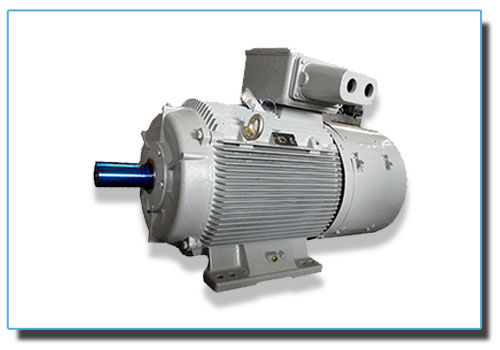

Slip Ring Motors

Slip Ring Motors


Product Description

CG has Low Voltage Slip Ring electric motors ranging from 3.7 kW to 350 kW in both TEFC (IP55) & Drip Proof (IP23) construction. These motors are designed with new Slip Ring and brush gear arrangement for trouble free operations and long lasting brush life , Slip Ring are moulded in epoxy-based insulation and excellent stability in operation at high temperature and have very good anti tracking property .

We also comply with IPSS standards to meet the requirements of Steel Plants.

Range 2.2 kW to 350 kW

Frame IEC112 to 355 in cast iron

Mounting Foot/Flange/Face

Pole 2 to 10 Other on request

Frequncy 50 or 60 Hz

Ambient -40 to + 65 ° C other on request

Protection IP 23/55
